3S 4.2v li-ion lipo balancer board balncing board full charge battery balance board circuit board assembly

Name: 3S 42v liion lipo balancer board balncing board full charge battery balance board circuit board assembly
Brand: CANYI
Price: 1 USD

Wholesale 3S 4.2v li-ion lipo balancer board balncing board full charge battery balance board circuit board assembly from china suppliers

Brand Name : CANYI

Model Number : CY-HX-JH-001

Certification : RoHS

Place of Origin : Guangdong, China

MOQ : 50PCS

Price : Negotiated

Payment Terms : Telegraphic Transfer in Advance (Advance TT, T/T)

Supply Ability : 10,000PCS Per Day

Delivery Time : 15-20 days

Packaging Details : Dimensions per Unit:19*6.3*21 centimeter • Weight per Unit:100g• Units per Export Carton:10000 • Export Carton Dimensions L/W/H: 42*33*24 centimeter• Export Carton Weight:3 Kilograms

Type : Lithium Battery Charger Protection Board

Package : DIP

Shipping by : DHL\UPS\Fedex\EMS\HK Post

Lead time : 7-12days

Application : Battery

OEM : Can be customized here

Contact Now

3S 4.2v li-ion lipo balancer board balncing board full charge battery balance board with free shipping with Equilibrium

The balance board is suitable for the li-ion battery pack without balance functions,so as to equalizing charge lithium battery charge function, make the battery pack each series charge at the same time.

Parameter:

Balance Voltage for each single cell: 4.2V

Balance current for each single cell :66mA

Size: L25mm*W22mm

Balancer is just a Auxiliary function, The balancing means when the battery charging,each series battery need with the same voltage.when ONE cell voltage get 4.2V ,the other cells not, the first cell voltage will discharge to wait the other cells rising to the same level.

Note:

battery internal resistance differences within 5 milliohm, voltage within 0.03 V voltage, capacity vary within 50 ma

Cut-off Voltage is according to the BMS setting.

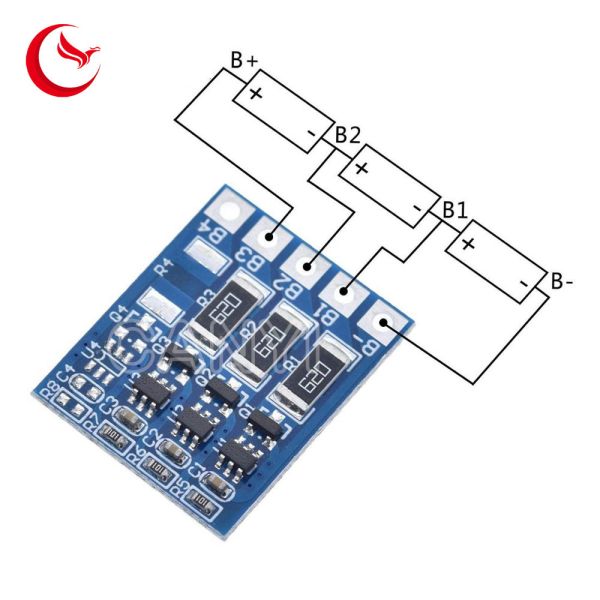

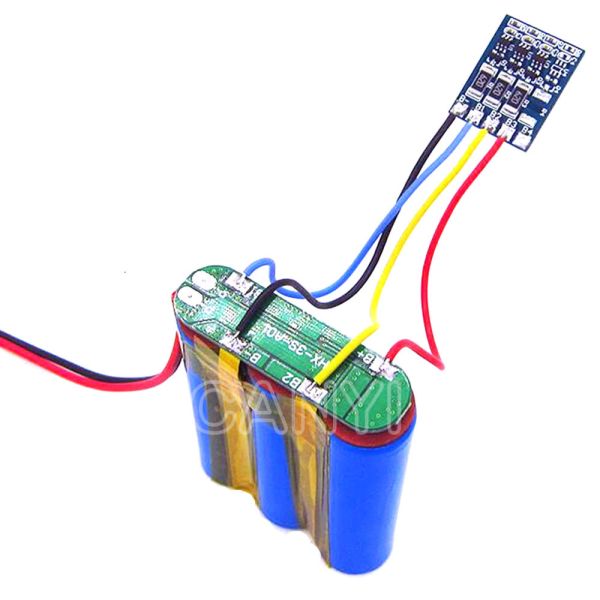

3S Cnnection instruction:

B4+ Without connection

B3+ Connect battery positive;

B2+ Connect the point between battery 1 and battery 2;

B1+ Connect the point between battery 2 and battery 3;

B- Connect battery negative;

3S 4.2v li-ion lipo balancer board balncing board full charge battery balance board circuit board assembly

Welcome to customize the circuit board you need.
